Free Oracle Cloud: 10. Running SQLcl and Datapump from the Compute Instance (VM) to ATP

This post is part of a series of blog posts on the Best and Cheapest Oracle APEX hosting: Free Oracle Cloud.

In this post, we will install and use SQLcl and Datapump from the Compute Instance (VM) connecting to our Oracle Database in the Autonomous Transaction Processing (ATP) Cloud.
Although I use most of the time SQL Developer to connect to the database, I find it important to be able to use command-line tools too, as this is what you can automate and it's really fast.
In the previous post, we installed the command line tools of the Oracle Cloud on our own machine, but for the Oracle Tools, I prefer to install them on our Compute Instance in the Cloud. Especially when we want to automate something, it's easier to do this from another machine in the cloud. It also makes it easier to follow as we only have to focus on how to install the Oracle Tools on Linux.

Oracle Instant Client

In order to connect to an Oracle database from a machine, we will use the Oracle Instant Client software. You can download the software for the different operating systems, but as our VM is running Oracle Linux we can install it with just a few commands:

First, update yum so it's smarter where to find Oracle software:

yum install oracle-release-el7

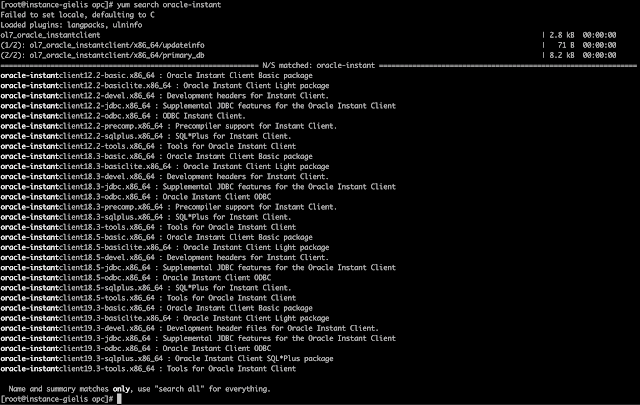

Next, we can search for the Oracle Instant Client version we need:

yum search oracle-instant

We want to install the Oracle Instant Client version of the system we want to connect to. For the Free Oracle Database on ATP, it's Oracle Database Release 18.4, so we will pick Oracle Instant Client 18.5. To be honest, typically I take the latest version of the software, but when I tried that, the Oracle Instant Client complained the libraries were not compatible with the version we wanted to connect to. I always thought you could use newer versions of the Oracle tools against previous databases, but apparently, that is no longer the case (at least not during my tests). Anyway, it's good to have the version of the same tool as the version you connect to.

Install the Instant Client basic and tools packages:

yum install oracle-instantclient18.5-basic.x86_64
yum install oracle-instantclient18.5-tools.x86_64

As a last step we set some environment variables:

export PATH=/usr/lib/oracle/18.5/client64/bin:$PATH
export LD_LIBRARY_PATH=/usr/lib/oracle/18.5/client64/lib
export TNS_ADMIN=/usr/lib/oracle/18.5/client64/lib/network/admin

That's it! We can now use the Oracle tools. Note there's also a SQL Plus package, which allows you to connect from a command line to the database, but I prefer to use SQLcl as it has some cool features for Oracle APEX (e.g. exporting your app). Download SQLcl now.

Before we move on to installing SQLcl, make sure you still have the credentials (wallet) file we used when connecting with SQL Developer to our database. Just like with SQL Developer, we also need this with SQLcl to connect to our database. As a reminder here's the screenshot I'm talking about:

Upload both the SQLcl and Credentials zip file to the Compute Instance (VM):

scp -i .ssh/oraclecloud /Users/dgielis/Downloads/wallet_DBDIMI.zip opc@

scp -i .ssh/oraclecloud /Users/dgielis/Downloads/sqlcl- opc@

Connect to your VM and unzip the files:

ssh -i .ssh/oraclecloud opc@

unzip /tmp/wallet_DBDIMI.zip -d /usr/lib/oracle/18.5/client64/lib/network/admin

unzip /tmp/sqlcl- -d /opt

Before we can run SQLcl we also need to make sure we have JAVA installed, as SQLcl depends on that:

yum install java

To make it easier to run SQLcl from anywhere we will create a symbolic link:

ln -s /opt/sqlcl/bin/sql /usr/lib/oracle/18.5/client64/bin/sql

Now we are ready to connect to our database on ATP:

sql admin@dbdimi_high

There we go... we can connect from our VM to our ATP database.

The next thing we want to do is export the data from our ATP database. We will use Datapump that came with the installation of the tools.

Run the command to export the schema CLOUD:

expdp admin@dbdimi_high \
exclude=index,cluster,indextype,materialized_view,materialized_view_log,materialized_zonemap,db_link \
data_options=group_partition_table_data  \
parallel=1 \
schemas=cloud \

So where did this export go? To the default DATA_PUMP_DIR directory we don't have direct access to... but to list the files in the directory we can do:


Remember my previous blog post about the Object Storage, in which we set up a Backups bucket?
Oracle allows you to connect your Object Storage to your ATP database and that is exactly what we will do further on :)

We will use the same user we created earlier for CLI. In order to connect to ATP we need to set up an Auth Token. Go to the User Details of cliUser and click the Auth Tokens:

Click the Generate Token button:

There's the token... you only see it once, so make sure to copy it:

Next, connect to your ATP database and run the script to add the credentials to the ATP database:

    credential_name => 'DEF_CRED_NAME'
    , username => 'cliUser'
    , password => 'Frx}R9lD0O}dIgZRGs{:'

Now that the DBMS_CLOUD package has credentials, we can do other calls with this package.
To add the Datapump export files to the Object Storage, we can use the PUT_OBJECT procedure.

I created a small script to take all the files from the DATA_PUMP_DIR and put them in the backups Bucket in the Object Storage:

  for r in (select object_name, bytes
              from dbms_cloud.list_files('DATA_PUMP_DIR'))
   dbms_cloud.put_object(credential_name => 'DEF_CRED_NAME',
     object_uri => 'https://objectstorage.us-ashburn-1.oraclecloud.com/n/id9u4qbhnjxj/b/backups/o/'||r.object_name,
     directory_name => 'DATA_PUMP_DIR',
     file_name => r.object_name);
  end loop;

And when we check our bucket, we see the Datapump export files! Yay!

We also want to export our Oracle APEX apps. In some projects, I use the APEXExport utility, but now we will use SQLcl to export our APEX app 101:

apex export 101

In real life I typically create a few scripts which I can run one-by-one or combined in a general backup script. The script will export the Oracle schemas, the APEX apps and save the files to another location, in our case the Object Storage.

vi make_backup.sh

 Here are the details of the scripts which are called in the main backup script:

You can schedule this script with crontab, for example, every day at 2AM:

The above is just an example of what you can do to automate your backups. You have to decide how frequently you want to do those backups.

If you want to move your existing Oracle database and APEX apps to the Oracle Cloud, the steps are similar to above. You upload your Datapump export file to your Object Storage. Next, run the Data Pump Import with the dump file parameter set to the list of file URLs on your Cloud Object Storage and the credential parameter set to the name of the credential you created earlier. For example:

impdp admin/password@dbdimi_high \
     directory=data_pump_dir \
     credential=def_cred_name \
     dumpfile= https://objectstorage.us-ashburn-1.oraclecloud.com/n/adwc/b/adwc_user/o/export%u.dmp \
     parallel=1 \
     partition_options=merge \
     transform=segment_attributes:n \
     transform=dwcs_cvt_iots:y transform=constraint_use_default_index:y \

Next, you would create your APEX workspace and import the APEX apps.

In the next post, we dive again in Oracle APEX and how to send emails from your APEX app.
